Type 2 to Type 2 EV Charging Cable

Mode 3 EV Charging Cable

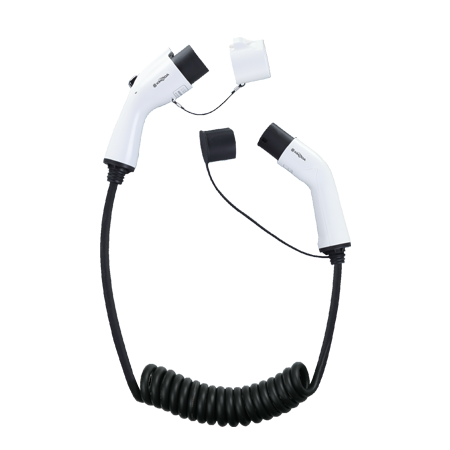

Spiral EV Charging Cable, 16A / 32A, 250V / 480V, IP54, Customized Length

SEND EMAIL TO US
PRODUCT DETAILS

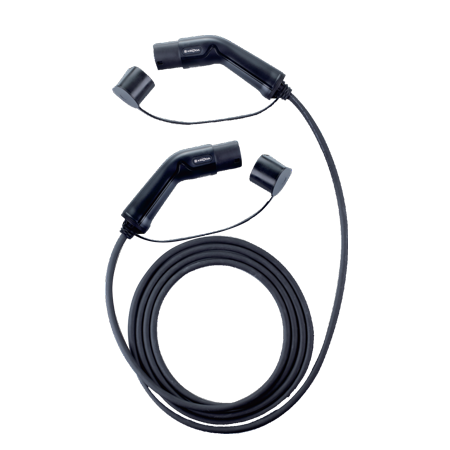

Type 2 to Type 2 EV Charging Cable

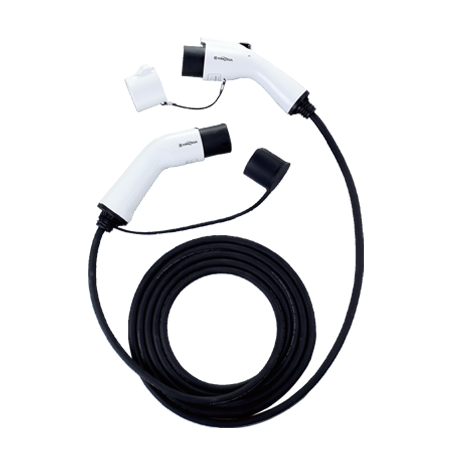

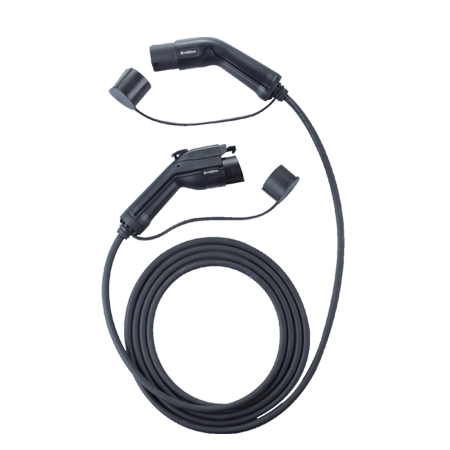

This series of products includes GB/T to Type 2, Type 1 to Type 2, and Type 2 to Type 2 EV charging cables.

The plugs have a thermoplastic housing and pins made of silver-plated copper alloy.

With the ergonomic designs. the plugs are comfortable to hold and easy to plug and unplug.

They are compatible with electronic locks on the EVSE or the EV.

The vehicle will give an order to lock the plugs at both ends after it is ready for charging.

The current of Type 2 to Type 2 EV charging cable is an alternative to one phase or three phases.


Specification

Model

KD-IP3-AC1.0-C-16AS
KD-IP3-AC1.0-C-16ATKD-IP3-AC1.0-C-32ASKD-IP3-AC1.0-C-32AT

Rated Current

16A16A32A32A

Cable Specification

3*2.5mm²+1*0.5mm²5*2.5mm²+1*0.5mm²3*6mm²+1*0.5mm²5*6mm²+1*0.5mm²


Parameters

Output Power/

Working Voltage

250V / 480V

Working Temperature

-30℃ ~+50℃

Cable Length

Customized

Anti-lmpact

Yes

Anti-UV

Yes

Protection Level

IP54

Certification

CE, TUV, CB, UKCA

Pins

Copper alloy

Plug Shell Material

Thermoplastics

Cable Jacket

TPE/TPU
Cable ColorBlack, Orange, Green
Warranty24 months
