EV Charging Cable, 8A / 10A / 13A / 16A, Max 3.5kW 220V, IP65, Customized Length
SEND EMAIL TO US

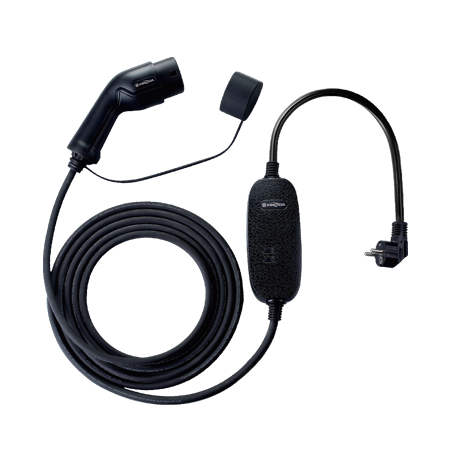

PRODUCT DETAILSG2 Portable EV Charging Cable Without LCD Display
Application
Villas, Underground garages, Ground parking spaces, and any other places where there is a home socket inlet.
APP Connection
Smart Charging
OTA Upgrade
Double Temperature Control Protection from Power Plug and Controller
Grounding Abnormality Reminder
IP65 Protection
Specifications
Model | GB/T-KD-GP2-AC1.0-16A | Type 2-KD-GP2-AC1.0-16A | Type 1-KD-GP2-AC1.0-16A |
Plug Type | GB/T | Type 2 | Type 1 |
Rated Current | 16A | 16A | 16A |
Cable Specification | 3*2.5mm²+1*0.75mm² | 3*2.5mm²+1*0.5mm²(TPU) | 3*2.5mm²+1*0.5mm² |
| Optional Fixed Currents | 8A, 10A, 13A, 16A | 8A, 10A, 13A, 16A | 8A, 10A, 13A, 16A |
Parameters
Rated Current | 8A/10A/13A/16A |
Power | Max 3.5kW |
| Working Voltage | 220V |
UV-proof | Yes |
| Working Temperature | -30℃~+55℃ |
Protection Level | IP65 |
Shell Material | Thermoplastics |
Cable Jacket | TPE/TPU |
| Cable Length | Customized |
Certification | CQC (GB/T), TUV/CE (Type 2) |
