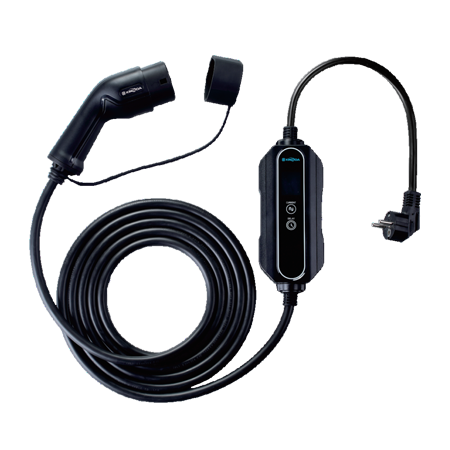

Portable EV Charging Cable (1 Phase, AC+DC6mA)

Mode 2 EV Charging Cable

EV Charging Cable, 8A / 10A / 13A / 16A, 220V / 240V, IP65, Customized Length

SEND EMAIL TO US
PRODUCT DETAILS

Portable EV Charging Cable (1 Phase, AC+DC6mA)

Application

Villas, Underground garages, Ground parking spaces and any other places where there is a home socket inlet.

Temperature Monitoring

The working temperature of the charger is monitored all the time. Once the temperature exceeds the max a-

llowed value, the charger will stop working immediately. When the temperature returns to normal, the charging

system will automatically re-work.

Automatic Fault Repair

The smart chip can automatically repair charging faults to ensure the stable operation of the product.

Product Certification

TUV, CE, CB, UKCA, UL

Robust Housing

The shell is made of PC which is sturdy and reliable and can bear the impact of a 1.5T auto without any damage.

Smart Charging

lt can set the charging time when you start to charge.

OTA (optional)

OTA remote software upgrade is optional.


Specification

Model

KD-IP2-AC2.0-16AKD-IP2-AC2.0-32A

Plug Type

Type2Type2

Max Current

16A32A
Adjustable Currents
8A,10A,13A,16A10A,16A,20A,24A,32A
Optional Fixed Currents8A,10A,13A,16A10A,16A,20A,24A,32A


Parameters

Rated Currents

8A/10A/13A/16A

Power

3.5~7k

Cable Length

Customized

Working Voltage

220V/240V

Anti-UV

Yes

Working Temperature

-30℃~+55℃

Protection LeveI

IP65

Shell Material

Thermoplastics

Cable Jacket

TPE/TPU

CertificationTUV, CE, CB,  UKCA, UL

Protection

Protection against leakage, overheating, lightning, overcurrent, undervoltage and overvoltage, automatic power off in an emergency, and CP fault detection.

Standards

IEC61851.1-2017 IEC62196.2-2016 EN61851.1-2001 EN61851.21-2001

EN61851.22-2001 IEC61851.1-2017 IEC62196.2-2016 IEC62752-2018 SAEJ1772-2017 UL 2231-2
